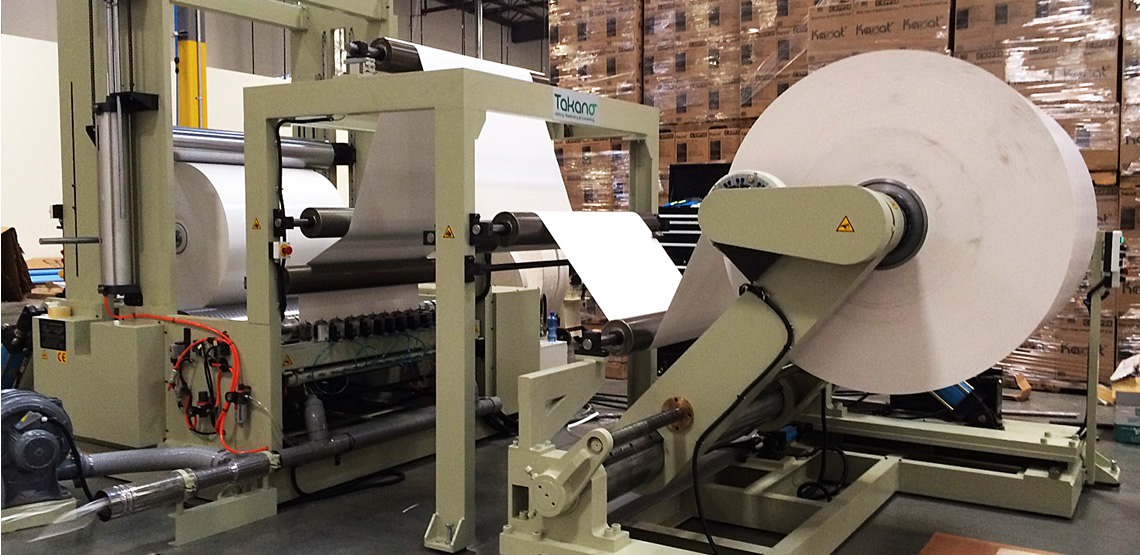

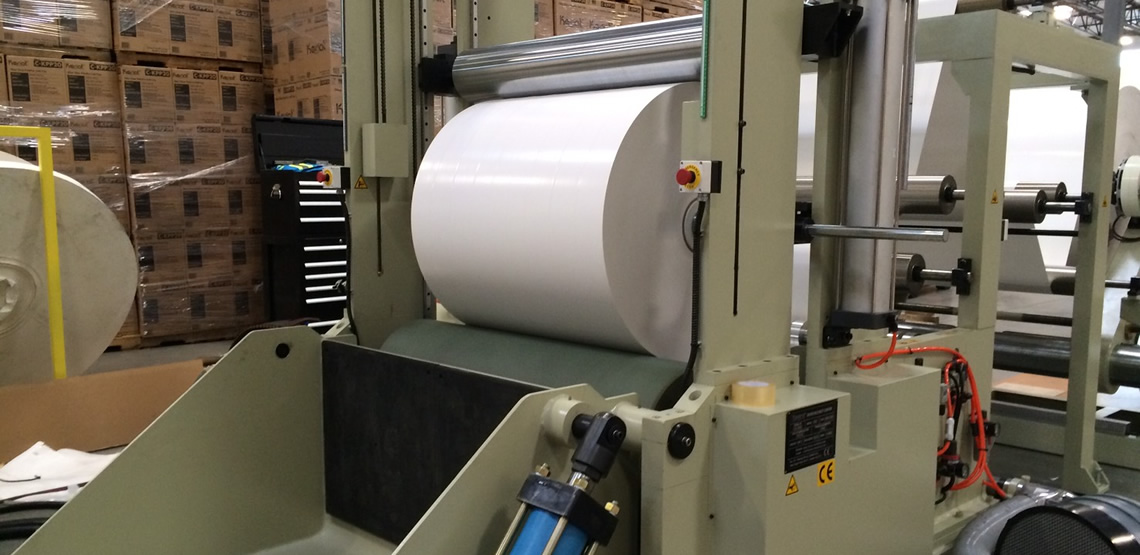

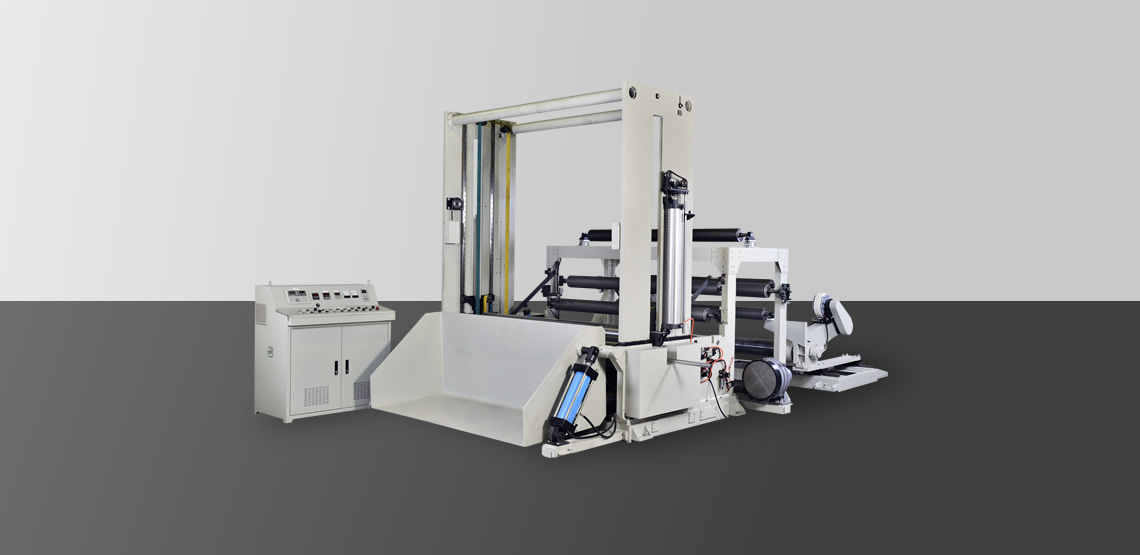

PE Laminated Cup Board Slitter, High Speed Mill Roll Slitter





FEATURES


  • High speed mill roll slitter rewinder

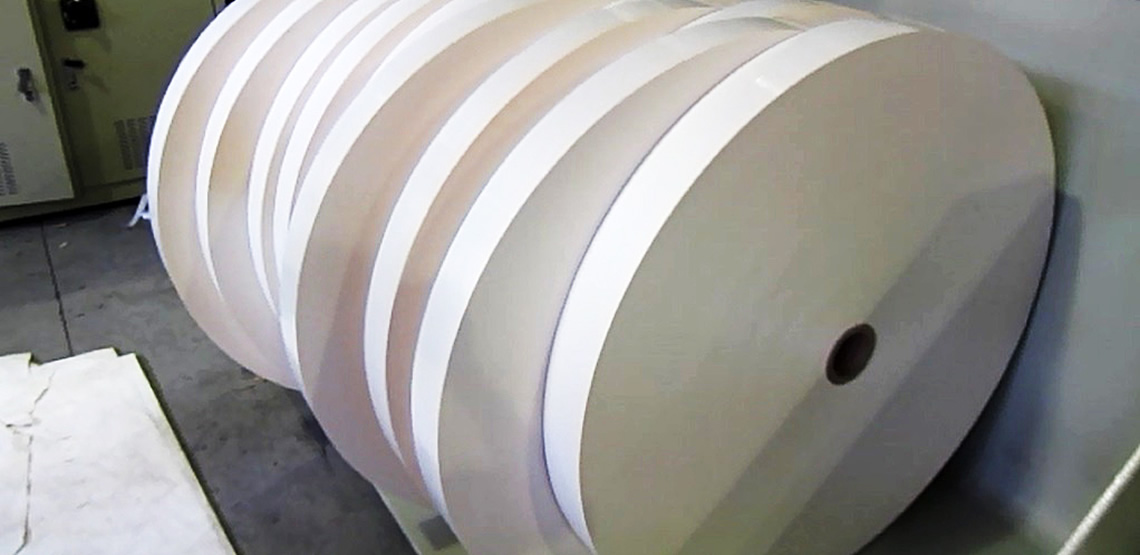

  • Specialized in PE laminated cup board slitting



SPECIFICATION




Machine working width 1500 / 1800 / 2000 / 2200 mm
Unwind loading Shaftless floor pick up by hydraulic
Max. unwind diameter 1500 / 1600 mm
Unwind core shaft Core chucks: 3" / 6" / 12"
Slitting mode Shear cut
Min. slit width 50 / 80 / 100 mm
Rewinding mode Simplex surface winding
Max. rewind diameter 1200 / 1500 / 1600 mm
Shaftless rewinding Core chucks: 3" / 6" / 12"
Max. winding speed 300 / 400 / 500 M/min
Unloading Hydraulic cradle
Tension control Included
Web guider Included
Control panel Conventional



OPERATION VIDEO


MODEL B201-2200





MODEL B201-1300
